AK Ramon vacuum packers standing

AK Ramon vacuum packers standning are designed for professional food-processing environments requiring larger chambers, stronger vacuum pumps and greater packaging capacity. The range includes four floor-standing models with pump capacities from 20 to 100 m³/h.

All models are manufactured from AISI 304 stainless steel and equipped with a transparent curved lid, double sealing and Soft Air technology. Integrated wheels allow the machines to be moved easily for cleaning or repositioning.

Contact us

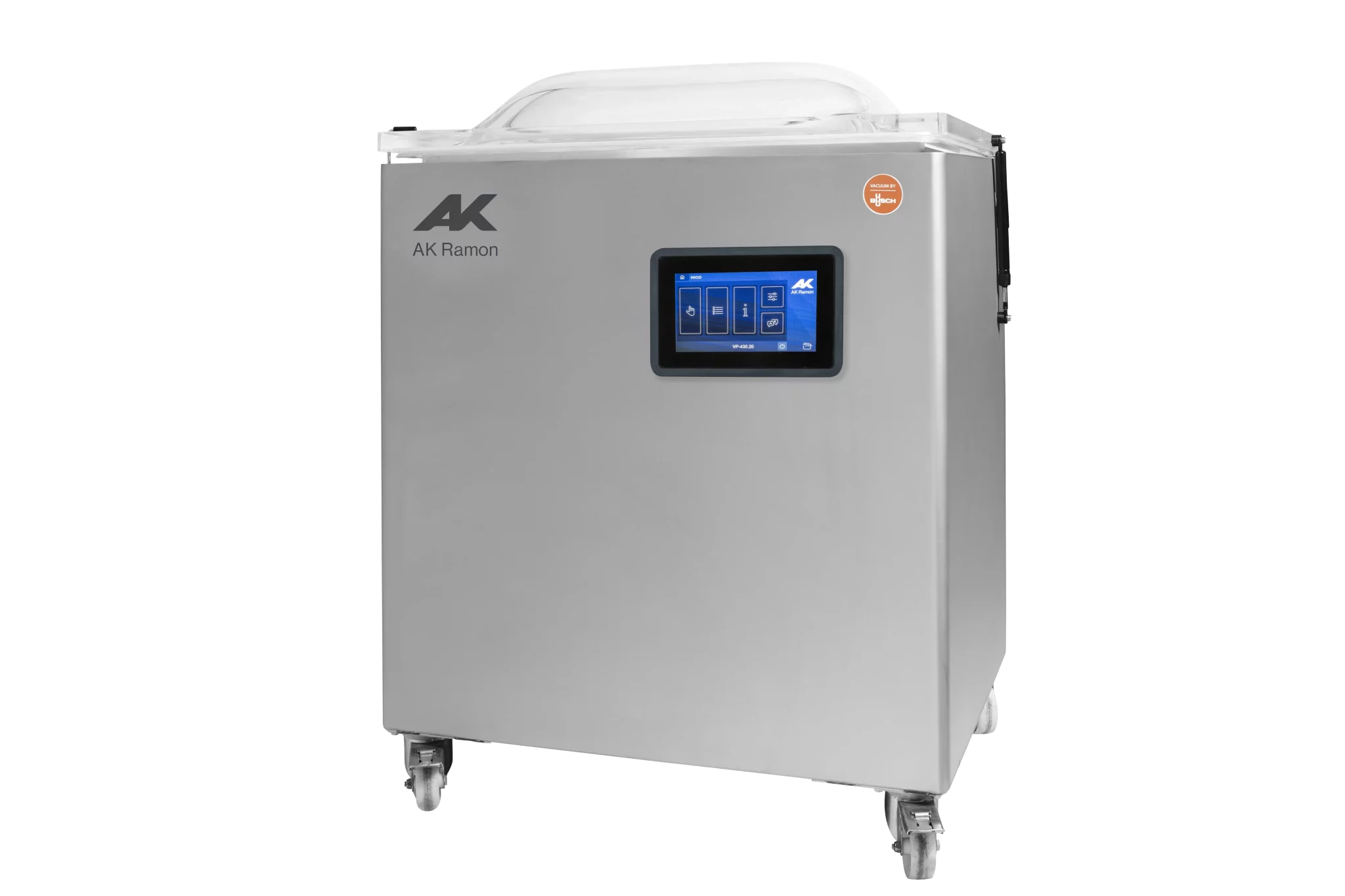

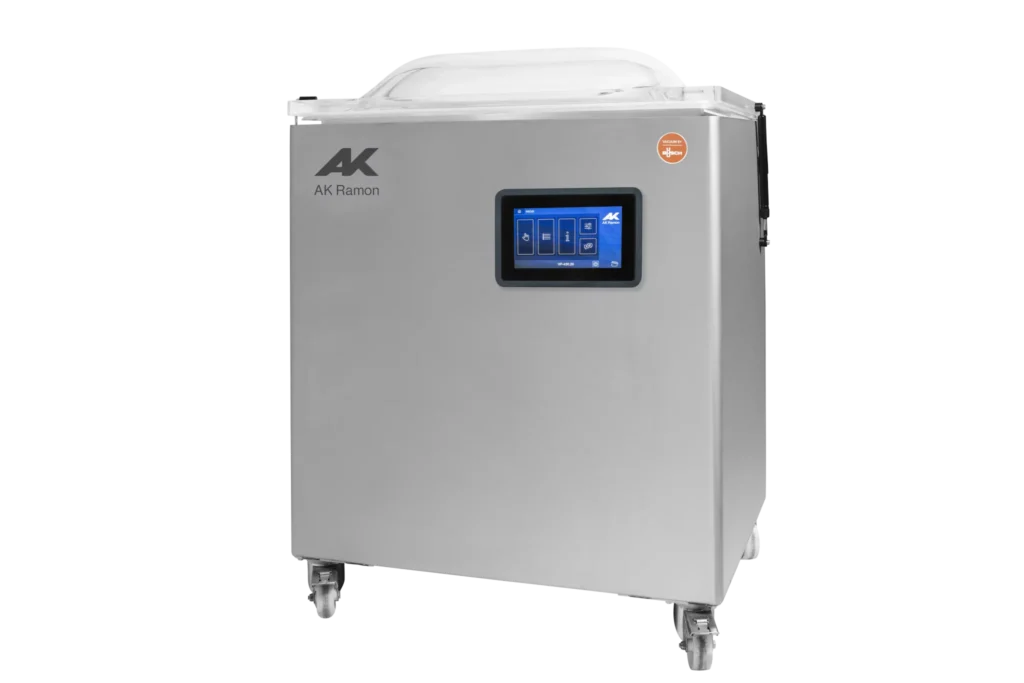

AK Ramon VP-600

  • The AK Ramon VP-600 is a compact standing vacuum packaging machine
  • The standard machine is equipped with a 20 m³/h Busch vacuum pump. An optional 40 m³/h pump is available when faster vacuum cycles are required.
  • Options:
    40 m³/h Busch vacuum pump
    Inert-gas flushing
    Sensor-controlled vacuum
    Excess-bag cutting
  • Accessories:
    Inclined plate for liquids and sauces
    Vacuum connector for external containers
Vacuum packer

Technical information

VP-600 Standard

Pump capacity

20 m³/h

Power

0.75 kW

Chamber dimensions

580 × 450 × 180 mm

Machine dimensions

637 × 580 × 1,022 mm

Packing dimensions

840 × 760 × 1,210 mm

Net/gross weight

421/441 kg*

Sealing system

Double sealing

Machine cycle

10–30 seconds

Voltage

230 V / 1 phase / 50 Hz

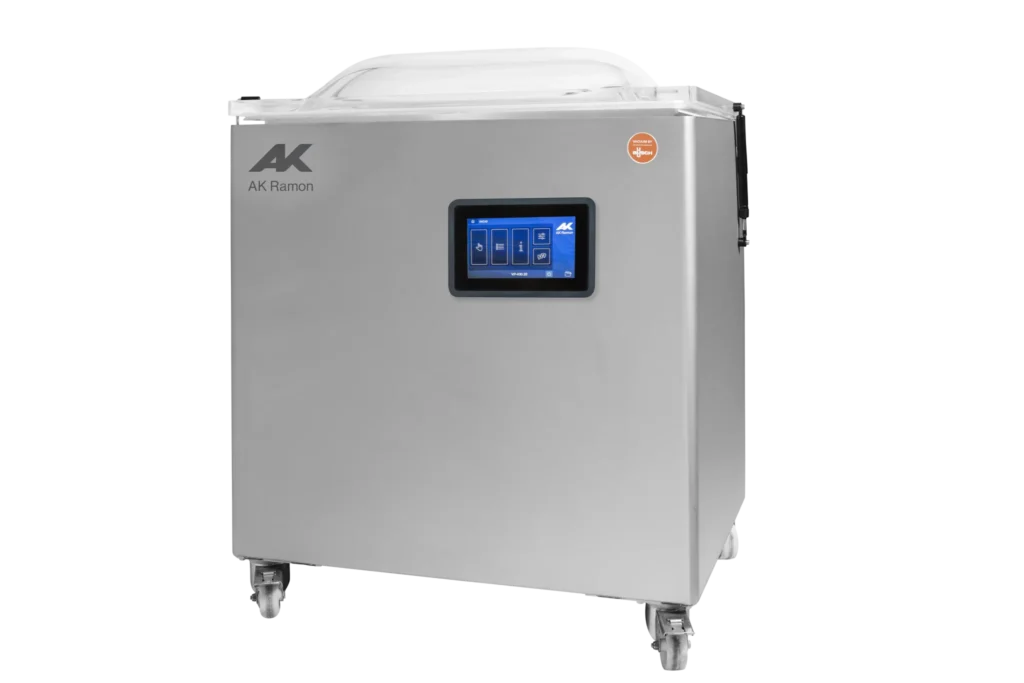

AK Ramon VP-800

  • The AK Ramon VP-800 is designed for businesses requiring a larger chamber and faster vacuum performance.
  • A 63 m³/h Busch vacuum pump provides efficient air removal, while the floor-standing stainless-steel construction supports regular professional use.
  • Options:
    Inert-gas flushing
    Sensor-controlled vacuum
    Excess-bag cutting
  • Acessories:
    Inclined plate for liquids and sauces
    Vacuum connector for external containers

Technical information

VP-800

Pump capacity

63 m³/h

Power

1.50 kW

Chamber dimensions

800 × 550 × 200 mm

Machine dimensions

880 × 650 × 1,030 mm

Packing dimensions

1,020 × 780 × 1,220 mm

Net/gross weight

855/875 kg*

Sealing system

Double sealing

Alternative sealing system

Single sealing with bag cutting

Machine cycle

10–30 seconds

Voltage

400 V / 3 phase / 50 Hz

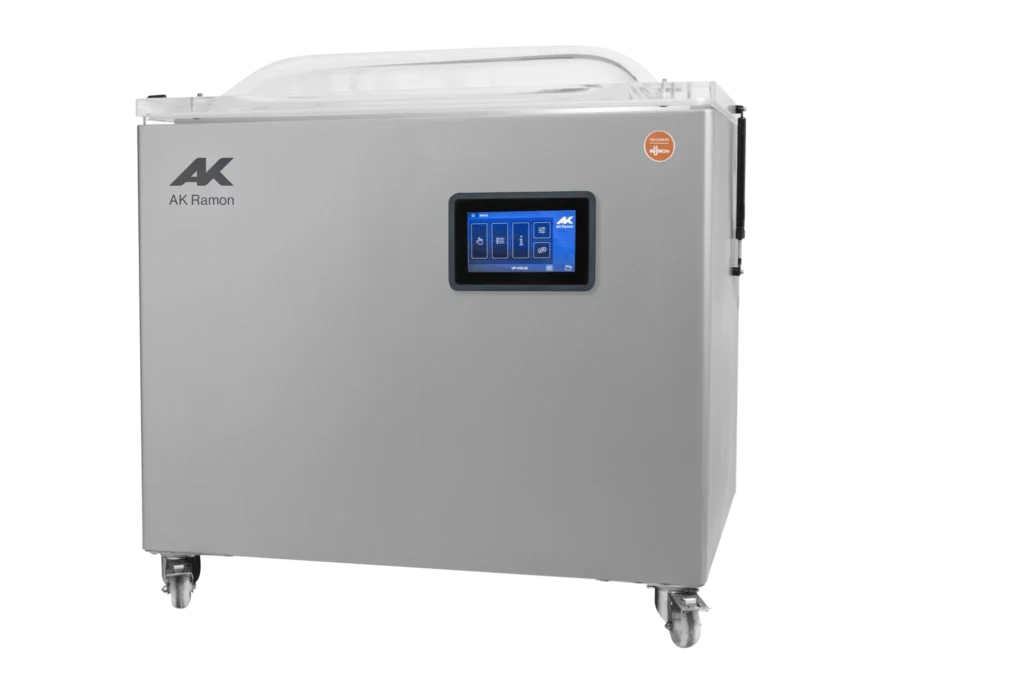

AK Ramon VP-1000

  • The AK Ramon VP-1000 is a large single-chamber vacuum packaging machine for industrial food-processing applications.
  • The machine is equipped with a powerful 100 m³/h Busch vacuum pump
  • Double sealing and a three-phase electrical connection.
  • Options:
    Inert-gas flushing
    Sensor-controlled vacuum
    Excess-bag cutting
  • Acessories:
    Inclined plate for liquids and sauces
    Vacuum connector for external containers

Technical information

VP-1000

Pump capacity

100 m³/h

Power

2.70 kW

Chamber dimensions

1,000 × 600 × 200 mm

Machine dimensions

1,080 × 700 × 1,040 mm

Packing dimensions

1,020 × 830 × 1,220 mm

Net/gross weight

925/945 kg*

Sealing system

Double sealing

Alternative sealing system

Single sealing with bag cutting

Machine cycle

10–30 seconds

Voltage

400 V / 3 phase / 50 Hz

AK Ramon VP-1000 Alta

  • The AK Ramon VP-1000 Alta is the high-chamber version of the VP-1000.
  • Its chamber height is increased from 200 to 300 mm
  • The machine combines a 100 m³/h Busch vacuum pump with a large 1,000 × 600 × 300 mm chamber.
  • Options:
    Inert-gas flushing
    Sensor-controlled vacuum
    Excess-bag cutting
  • Acessories:
    Inclined plate for liquids and sauces
    Vacuum connector for external containers

Technical information

VP-1000 Alta

Pump capacity

100 m³/h

Power

2.70 kW

Chamber dimensions

1,000 × 600 × 300 mm

Machine dimensions

1,080 × 700 × 1,140 mm

Packing dimensions

1,020 × 830 × 1,220 mm

Net/gross weight

855/875 kg*

Sealing system

Double sealing

Alternative sealing system

Single sealing with bag cutting

Machine cycle

10–30 seconds

Voltage

400 V / 3 phase / 50 Hz
