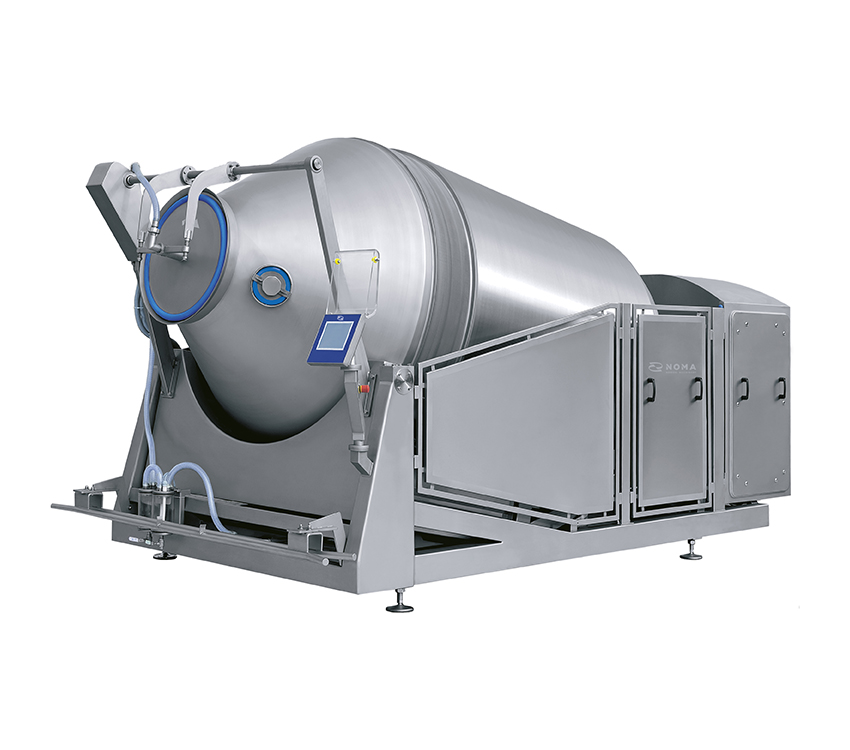

Nowicki MAH Tilted Vacuum Tumblers
The Nowicki MAH Tilted Vacuum Tumblers deliver cutting-edge, high-capacity tumbling and marination by combining tilt functionality with powerful vacuum processing. With larger drum volume and faster cycle times, they enhance product texture, flavor absorption, and production efficiency.
Description
Built entirely from acid-resistant stainless steel with precision-machined, polished drums, the MAH series is engineered for durability and hygiene. A hydraulically tiltable drum increases load capacity and improves loading/unloading efficiency. The integral spiral blade system ensures rapid, uniform massaging. Vacuum processing utilizes reliable multistage BUSCH pumps, all managed via an intuitive touchscreen enhanced with SCADA monitoring and online diagnostics.
Key Features
Increased Capacity: Tilting drum holds up to 30% more than horizontal models.

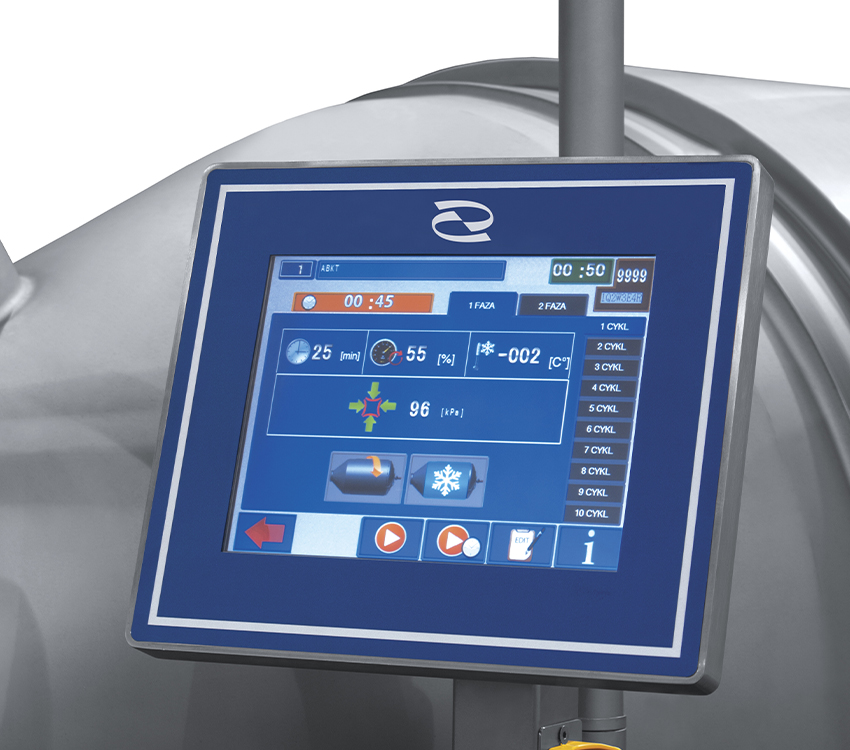

Advanced Control: Programs, vacuum, speed, tilt angle, and temperature are managed via touch screen with SCADA, RFID, and remote diagnostics.
Spiral Blade System: Enhances massaging efficiency and product appearance.
Robust Vacuum System: Equipped with BUSCH vacuum pumps and multistage pump protection.
Hydraulic Tilting: Drum tilts automatically for ergonomic loading/unloading.
Hygienic Construction: Seamless, acid-resistant steel with easy service access.

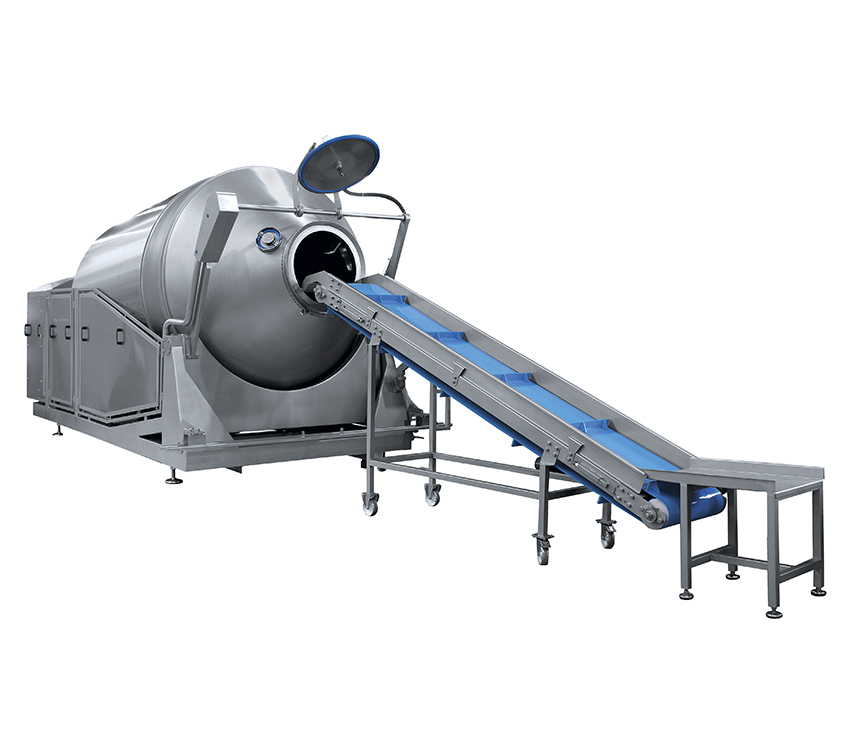

Modular Accessories: Includes automatic lid, belt loader systems, and spiral blade options.
Technical data
|
Model |
Drum Volume (L) |
Max Load (kg) |
Length (mm) |
Width (mm) |
Height (lowered–raised, mm) |
Weight (kg) |
|---|---|---|---|---|---|---|
|
MAH‑3200 PSCH |
3 200 |
2 000 |
4 260 |
2 360 |
2 500–2 860 |
~3 000 |
|

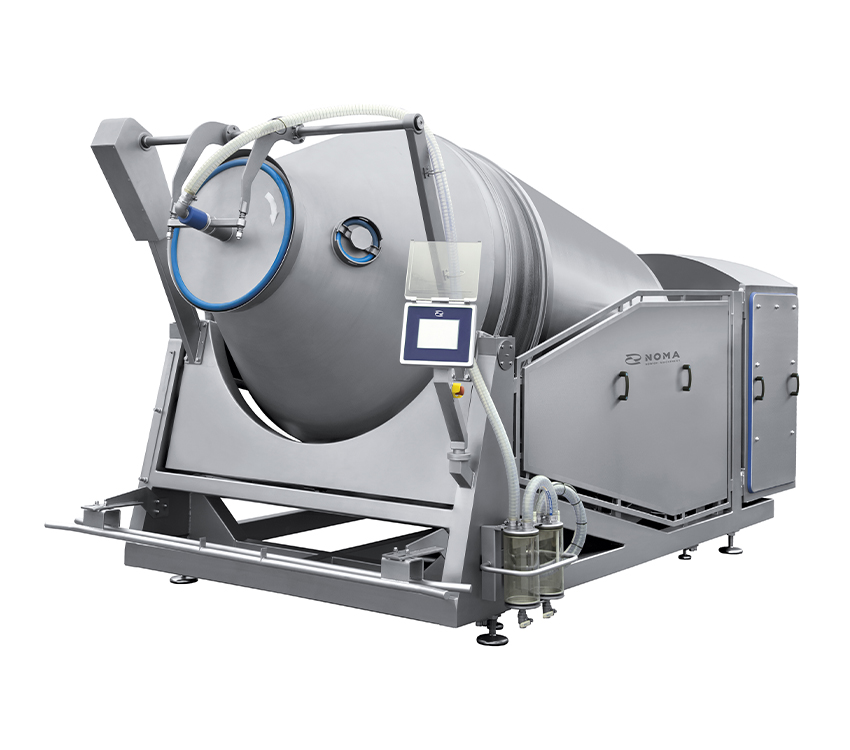

MAH‑5200 PSCH |
5 200 |
3 100 |
4 480 |
2 370 |
2 500–2 960 |
~3 500 |
|
MAH‑7200 PSCH |
7 200 |
4 300 |
4 800 |
2 390 |
2 500–3 170 |
~4 400 |
|
MAH‑10200 PSCH |
10 200 |
6 100 |
5 260 |
2 710 |
2 600–3 400 |
~5 700 |
