KT manual mincers

KT manual mincers are suitable for fresh meat, fish, poultry and various alternative food products. The range starts with compact tabletop units and extends to powerful industrial grinders with capacities of up to 1,500 kg/h.

Robust construction, hygienic product handling and removable feeding components make KT mincers reliable and easy to maintain.

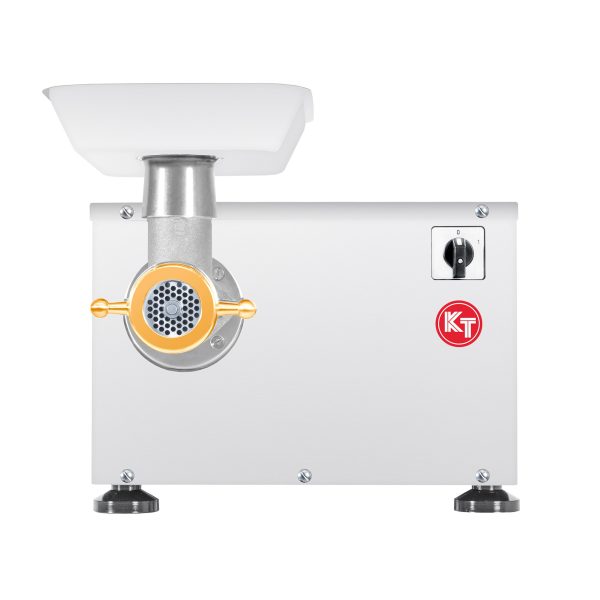

LM-5/P Meat Mincer

The LM-5/P is the smallest grinder in the KT range. It is intended primarily for grinding liver and small quantities of soft, fresh meat
The stainless-steel frame and removable feeding components provide durability and facilitate daily cleaning
The stainless-steel frame, compact dimensions and quiet operation
Accessories: cutting plates and knives

Parameter	LM-5/P
Cutting system	Enterprise
Motor power	0.55 kW
Grinding capacity	100 kg/h
Meat tray volume	3 litres
Plate diameter	53 mm
Machine weight	22 kg
Electrical supply	230 V / 50 Hz / 1-phase
Construction	Stainless-steel frame

LM-10/P Meat Mincer

The LM-10/P is a compact Enterprise-system meat mincer designed primarily for fresh meat.
The combination of a powerful 1.5 kW motor and quiet operation makes the LM-10/P suitable for both professional kitchens and customer-facing meat counters.
Accessories: stainless-steel mobile table, hold-to-run footswitch, sausage-filling tubes, cutting plates and knives.

Parameter	LM-10/P
Cutting system	Enterprise
Motor power	1.5 kW
Grinding capacity	200 kg/h
Meat tray volume	9 litres
Plate diameter	70 mm
Machine weight	42 kg
Electrical supply	400 V / 50 Hz / 3-phase or 230 V / 50 Hz / 1-phase
Construction	Stainless-steel frame

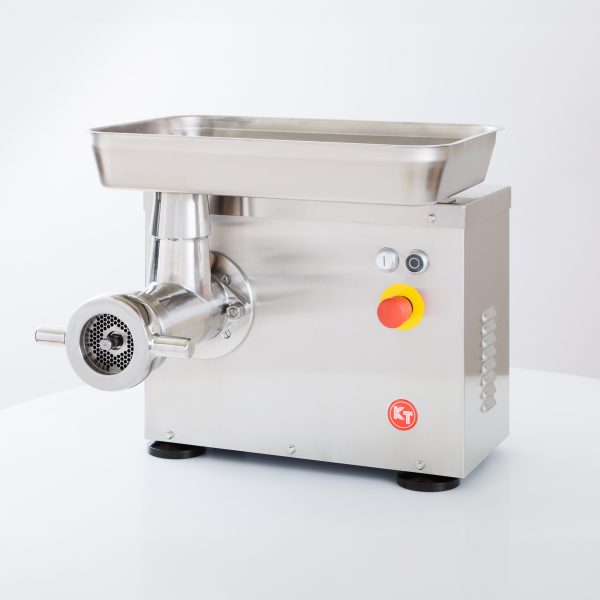

LM-22/P and LM-82/P Meat Mincers

The LM-22/P and LM-82/P are compact meat mincers designed primarily for grinding fresh meat.
Both machines have the same basic capacity and construction. The main difference is the cutting system:
LM-22/P: Enterprise cutting system
LM-82/P: Unger cutting system
Accessories: stainless-steel mobile table, hold-to-run footswitch, sausage-filling tubes, cutting plates and knives.

Parameter	LM-22/P	LM-82/P
Cutting system	Enterprise	Unger
Motor power	1.5 kW	1.5 kW
Grinding capacity	300 kg/h	300 kg/h
Meat tray volume	11 litres	11 litres
Plate diameter	83 mm	82 mm
Machine weight	44 kg	44 kg
Electrical supply	400 V / 50 Hz / 3-phase or 230 V / 50 Hz / 1-phase	400 V / 50 Hz / 3-phase or 230 V / 50 Hz / 1-phase
Grinding housing	Aluminium or stainless steel	Aluminium or stainless steel

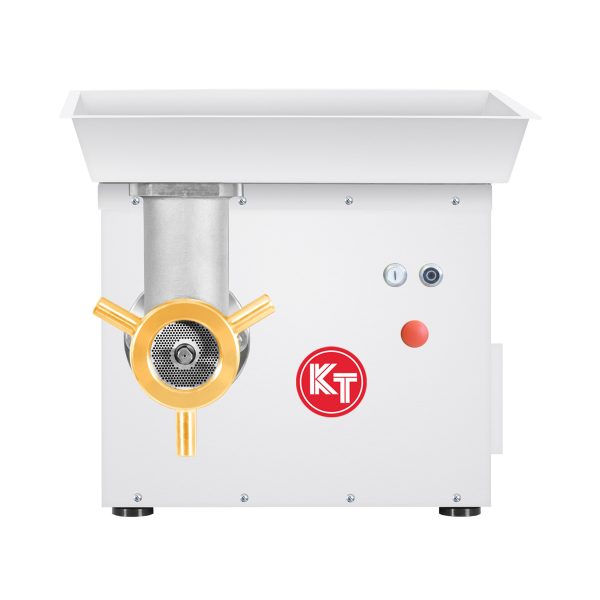

LM-32/P and LM-98/P Meat Mincers

The LM-32/P and LM-98/P are robust meat mincers for customers requiring more capacity than compact tabletop machines can provide.
A powerful 3.0 kW motor delivers a grinding capacity of approximately 600–800 kg/h.
The two models use different cutting systems:
LM-32/P: Enterprise cutting system
LM-98/P: Unger cutting system
Accessories: stainless-steel mobile table, hold-to-run foot pedal with key switch, sausage-filling tubes, cutting plates and knives.

Parameter	LM-32/P	LM-98/P
Cutting system	Enterprise	Unger
Motor power	3.0 kW	3.0 kW
Grinding capacity	600–800 kg/h	600–800 kg/h
Meat tray volume	35 litres	35 litres
Plate diameter	100 mm	98 mm
Machine weight	101 kg	103 kg
Electrical supply	400 V / 50 Hz / 3-phase or 230 V / 50 Hz / 3-phase	400 V / 50 Hz / 3-phase or 230 V / 50 Hz / 3-phase
Construction	Stainless-steel body and feeding tray	Stainless-steel body and feeding tray

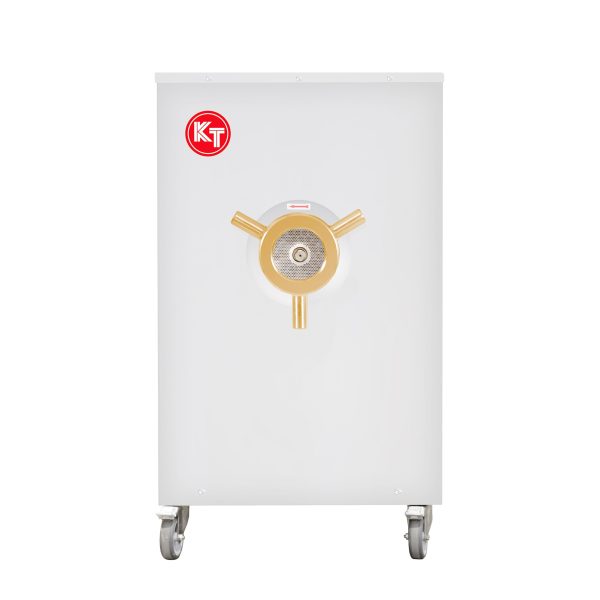

LM-42 and LM-130 Meat Mincers

The LM-42 and LM-130 are large standalone meat grinders designed for demanding food-processing operations
Their 7.5 kW motor provides a grinding capacity of up to 1,500 kg/h.
The models differ in their cutting systems:
LM-42: Enterprise cutting system
LM-130: Unger cutting system
Accessories: sausage-filling tubes, cutting plates and knives.

Parameter	LM-42	LM-130
Cutting system	Enterprise	Unger
Motor power	7.5 kW	7.5 kW
Grinding capacity	1,500 kg/h	1,500 kg/h
Hopper volume	95 litres	95 litres
Plate diameter	130 mm	130 mm
Machine weight	310 kg	310 kg
Feed screw	Stainless steel	Stainless steel
Electrical supply	400 V / 50 Hz / 3-phase	400 V / 50 Hz / 3-phase
Construction	Stainless-steel body and hopper	Stainless-steel body and hopper

KT Automatix Mixer Grinder Comparison

Model	Cutting system	Capacity	Motor	Hopper/tray	Plate diameter	Weight
LM-5/P	Enterprise	100 kg/h	0.55 kW	3 l	53 mm	22 kg
LM-10/P	Enterprise	200 kg/h	1.5 kW	9 l	70 mm	42 kg
LM-22/P	Enterprise	300 kg/h	1.5 kW	11 l	83 mm	44 kg
LM-82/P	Unger	300 kg/h	1.5 kW	11 l	82 mm	44 kg
LM-32/P	Enterprise	600–800 kg/h	3.0 kW	35 l	100 mm	101 kg
LM-98/P	Unger	600–800 kg/h	3.0 kW	35 l	98 mm	103 kg
LM-42	Enterprise	1,500 kg/h	7.5 kW	95 l	130 mm	310 kg
LM-130	Unger	1,500 kg/h	7.5 kW	95 l	130 mm	310 kg
