KT automatic mixer grinders

KT automatic mixer grinders combine mixing and grinding in one machine. The product can be mixed with salt, spices or other ingredients before being fed automatically into the grinding system.

Mixer grinders reduce manual handling and provide a more uniform product mix. Models are available with hopper capacities from 40 to 280 litres and grinding capacities of up to 1,600 kg/h.

Contact us

LM-22/A and LM-82/A Mixer Grinders

  • The LM-22/A and LM-82/A combine meat mixing and grinding in a compact machine.
  • They are equipped with one 3.0 kW motor, can be used for grinding and mixing
  • A removable mixing arm and smooth, rounded hopper surfaces facilitate thorough cleaning.
  • Accessories: hold-to-run foot pedal with key switch, manual minced-meat formers, outlet protector with safety switch, sausage-filling tubes, cutting plates and knives.
Meat grinder

Parameter

LM-22/A

LM-82/A

Cutting system

Enterprise

Unger

Motor power

3.0 kW

3.0 kW

Grinding capacity

660 kg/h

660 kg/h

Hopper volume

40 litres

40 litres

Plate diameter

83 mm

82 mm

Machine weight

180 kg

180 kg

Electrical supply

400 V / 50 Hz / 3-phase

400 V / 50 Hz / 3-phase

Alternative supply

400 V / 60 Hz / 3-phase

400 V / 60 Hz / 3-phase

Grinding housing

Cast iron or stainless steel

Cast iron or stainless steel

Feed screw

Aluminium or stainless steel

Aluminium or stainless steel

LM-32/A and LM-98/A Automatic Mixer Grinders

  • The LM-10/P is a compact Enterprise-system meat mincer designed primarily for fresh meat.
  • The combination of a powerful 1.5 kW motor and quiet operation makes the LM-10/P suitable for both professional kitchens and customer-facing meat counters.
  • Accessories: stainless-steel mobile table, hold-to-run footswitch, sausage-filling tubes, cutting plates and knives.

Parameter

LM-32/A

LM-98/A

Cutting system

Enterprise

Unger

Grinding motor

3.0 kW

3.0 kW

Mixing motor

1.1 kW

1.1 kW

Grinding capacity

1,150 kg/h

1,150 kg/h

Hopper volume

80 litres

80 litres

Plate diameter

100 mm

98 mm

Machine weight

230 kg

230 kg

Electrical supply

400 V / 50 Hz / 3-phase

400 V / 50 Hz / 3-phase

Alternative supply

400 V / 60 Hz / 3-phase

400 V / 60 Hz / 3-phase

Grinding housing

Cast iron or stainless steel

Cast iron or stainless steel

Feed screw

Aluminium or stainless steel

Aluminium or stainless steel

LM-42/A and LM-130/A Industrial Mixer Grinders

  • The LM-22/P and LM-82/P are compact meat mincers designed primarily for grinding fresh meat.
  • Both machines have the same basic capacity and construction. The main difference is the cutting system:
    LM-22/P: Enterprise cutting system
    LM-82/P: Unger cutting system
  • Accessories: stainless-steel mobile table, hold-to-run footswitch, sausage-filling tubes, cutting plates and knives.

Parameter

LM-42/A

LM-130/A

Cutting system

Enterprise

Unger

Standard grinding motor

7.5 kW

7.5 kW

Optional grinding motor

11.0 kW

11.0 kW

Mixing motor

1.1 kW

1.1 kW

Grinding capacity

1,600 kg/h

1,600 kg/h

Hopper volume

110 litres

110 litres

Plate diameter

130 mm

130 mm

Machine weight

380 kg

380 kg

Feed screw

Stainless steel

Stainless steel

Electrical supply

400 V / 50 Hz / 3-phase

400 V / 50 Hz / 3-phase

Alternative supply

400 V / 60 Hz / 3-phase

400 V / 60 Hz / 3-phase

Grinding housing

Cast iron or stainless steel

Cast iron or stainless steel

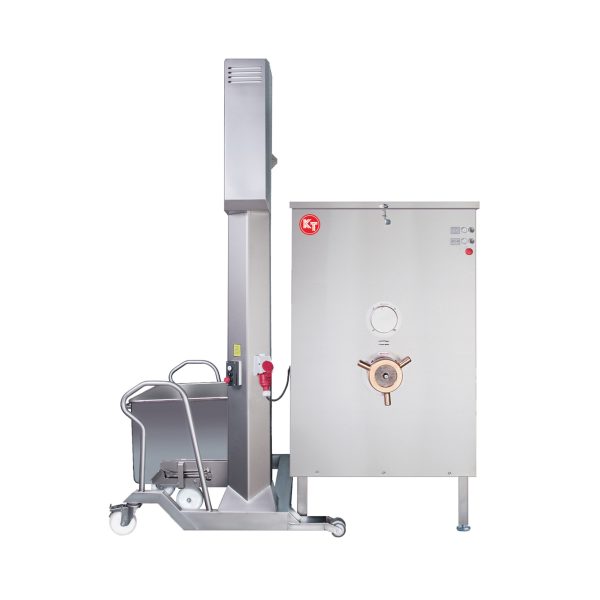

LM-42/280A and LM-130/280A Mixer Grinders

  • The LM-42 and LM-130 are large standalone meat grinders designed for demanding food-processing operations
  • Their 7.5 kW motor provides a grinding capacity of up to 1,500 kg/h.
  • The models differ in their cutting systems:
    LM-42: Enterprise cutting system
    LM-130: Unger cutting system
  • Accessories: sausage-filling tubes, cutting plates and knives.

Parameter

LM-42/280A

LM-130/280A

Cutting system

Enterprise

Unger

Standard grinding motor

7.5 kW

7.5 kW

Mixing motor

1.5 kW

1.5 kW

Grinding capacity

1,600 kg/h

1,600 kg/h

Hopper volume

280 litres

280 litres

Plate diameter

130 mm

130 mm

Machine weight

510 kg

510 kg

Feed screw

Stainless steel

Stainless steel

Electrical supply

400 V / 50 Hz / 3-phase

400 V / 50 Hz / 3-phase

Alternative supply

400 V / 60 Hz / 3-phase

400 V / 60 Hz / 3-phase

Grinding housing

Cast iron or stainless steel

Cast iron or stainless steel

Loading option

Separate trolley-lifting device

Separate trolley-lifting device

KT Automatix Mixer Grinder Comparison

Model

Cutting system

Capacity

Grinding motor

Mixing motor

Hopper

Weight

LM-22/A

Enterprise

660 kg/h

3.0 kW

Combined drive

40 l

180 kg

LM-82/A

Unger

660 kg/h

3.0 kW

Combined drive

40 l

180 kg

LM-32/A

Enterprise

1,150 kg/h

3.0 kW

1.1 kW

80 l

230 kg

LM-98/A

Unger

1,150 kg/h

3.0 kW

1.1 kW

80 l

230 kg

LM-42/A

Enterprise

1,600 kg/h

7.5 kW

1.1 kW

110 l

380 kg

LM-130/A

Unger

1,600 kg/h

7.5 kW

1.1 kW

110 l

380 kg

LM-42/280A

Enterprise

1,600 kg/h

7.5 kW

1.5 kW

280 l

510 kg

LM-130/280A

Unger

1,600 kg/h

7.5 kW

1.5 kW

280 l

510 kg
