• Industrial vacuum packer

AK Ramon industrial vacuum packers

AK Ramon industrial vacuum packers are designed for high-capacity vacuum packaging in meat, fish, cheese and other food-processing operations. The two double-chamber models allow the operator to prepare products in one chamber while the vacuum cycle runs in the other, improving productivity and reducing waiting time.

Both machines are manufactured from AISI 304 stainless steel and equipped with Busch vacuum pumps, double sealing, gas flushing and Soft Air technology. The range includes the compact VP-700 TB 100 and the higher-capacity VP-900 TBA 300.

Contact us

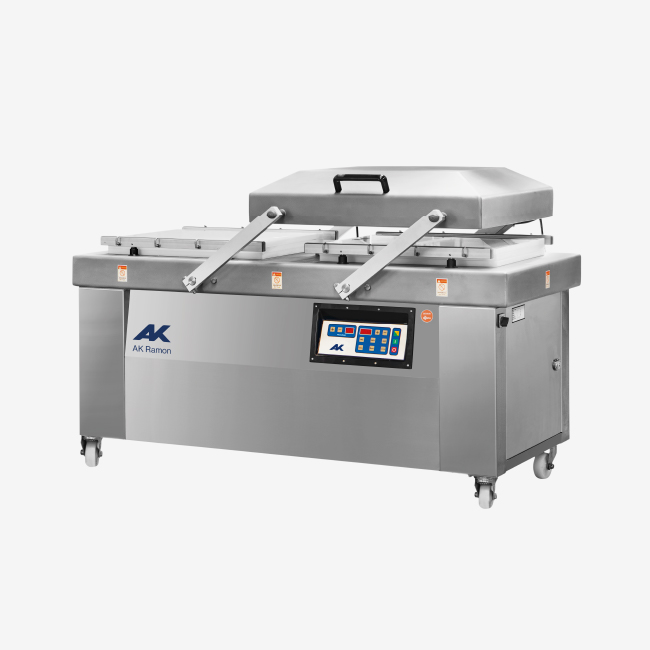

AK Ramon VP-700 TB 100

  • The AK Ramon VP-700 TB 100 is an industrial double-chamber vacuum packaging machine with manual lid movement.
  • The machine is equipped with a 100 m³/h Busch vacuum pump, double sealing and sensor-controlled vacuum
  • Gas flushing allows products to be packed in a modified atmosphere when required.
  • Options:
    Independent sealing and cutting control
    Excess-bag cutting
    220 V / 3 phase / 60 Hz electrical configuration

Technical information

VP-700 TB 100

Pump capacity

100 m³/h

Power

2.70 kW

Chamber dimensions

836 × 680 × 200 mm

Machine dimensions

1,590 × 710 × 1,000 mm

Packing dimensions

1,760 × 900 × 1,200 mm

Net/gross weight

421/441 kg

Lid operation

Manual

Sealing system

Double sealing

Alternative sealing system

Single sealing with cutting

Machine cycle

10–30 seconds

Voltage

400 V / 3 phase / 50 Hz

AK Ramon VP-900 TBA 300

  • The AK Ramon VP-900 TBA 300 is a high-capacity industrial double-chamber vacuum packaging machine.
  • It is available with semi-automatic or automatic lid movement as standard
  • Its large 1,005 × 830 mm chamber and powerful 302 m³/h Busch vacuum pump make the machine suitable for large products
  • An inert-gas flushing system is included as standard.
  • Options:
    Independent sealing and cutting control
    Excess-bag cutting
    220 V / 3 phase / 60 Hz electrical configuration
Industrial vacuum packer

Technical information

VP-900 TBA 300

Pump capacity

302 m³/h

Power

4.63 kW

Chamber dimensions

1,005 × 830 × 200 mm

Machine dimensions

2,050 × 1,020 × 1,050 mm

Packing dimensions

2,130 × 1,100 × 1,270 mm

Net/gross weight

855/875 kg

Lid operation

Semi-automatic or automatic

Sealing system

Double sealing

Alternative sealing system

Single sealing with cutting

Gas flushing

Included

Machine cycle

10–30 seconds

Voltage

400 V / 3 phase / 50 Hz
