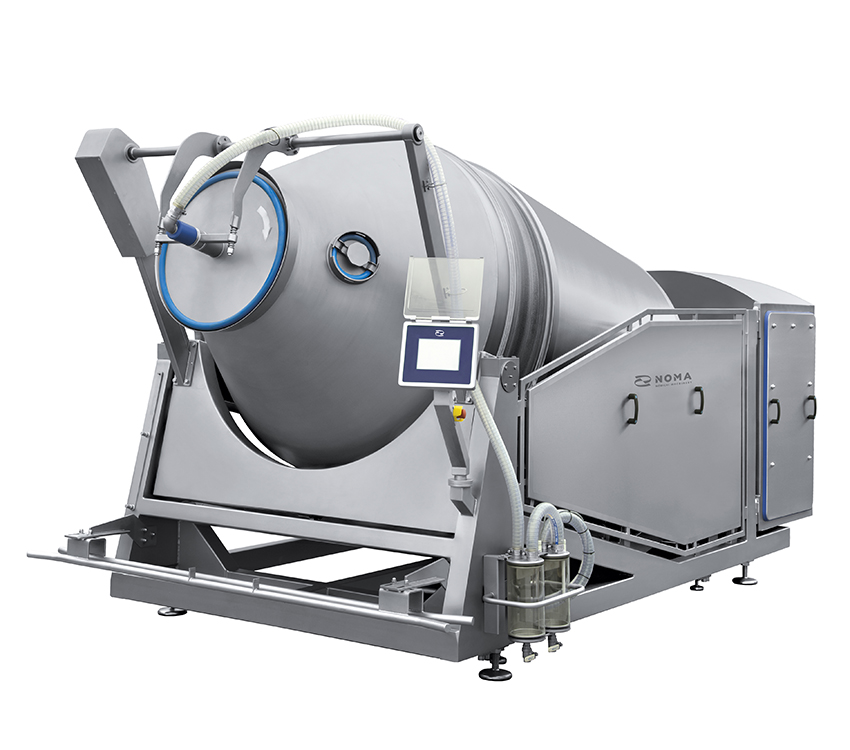

Nowicki MAH‑PSCH/D Vacuum Tumbler with Defrosting System
The MAH‑PSCH/D is an advanced vacuum tumbler designed for high-capacity defrosting and marinating of meat, poultry, seafood, and fish blocks. By combining powerful vacuum technology with built-in heating and cooling systems, it significantly reduces defrost time and preserves product quality.
Description
The Nowicki MAH‑PSCH/D is a tilted vacuum tumbler with an integrated defrosting system, designed for fast and uniform thawing, marinating, and tenderizing of frozen meat, poultry, or seafood. Its spiral blade system ensures consistent product movement, while the dual-function jacket enables both heating and cooling using glycol. The drum is hydraulically tilted for easy loading and unloading. All functions are managed through a user-friendly touchscreen with SCADA, RFID, and remote diagnostics support
Key Features
Efficient Block Defrosting: Special blade and jacket system minimize thawing time and weight loss.
Dual Heat/Cool Jacket: Glycol-cooled/heated drum with steam or cooling integration.
High Hygiene: Smooth stainless-steel interior, easy to clean and maintain.
Advanced Control: Touchscreen with up to 99 recipes, SCADA, diagnostics, RFID and remote access.
Vacuum System: Reliable BUSCH pump, protected against failure, with flexible outlet options.
Process Versatility: Supports defrosting, marination, cooking, curing, and cooling.
Hydraulic Drum Tilt: Ergonomic loading/unloading with full tilt automation.
Spiral Blade Agitation: Enhances movement and mixing during processing.
Technical data
|
Model |
Drum Volume (dm³) |
Length (mm) |
Width (mm) |
Height (mm) |
Weight (kg) |
|---|---|---|---|---|---|
|
MAH‑3200 PSCH/D |
3 200 |
4 200 |
1 960 |
2 500–2 820 |
4500 |
|
MAH‑5200 PSCH/D |
5 200 |
4 450 |
2 150 |
2 500–3 050 |
5025 |
|
MAH‑7200 PSCH/D |
7 200 |
4 800 |
2 300 |
2 500–3 300 |
5800 |
|
MAH‑10200 PSCH/D |
10 200 |
5 200 |
2 350 |
2 600–3 400 |
7000 |
