Crate loader
The G.Mondini MCL Crate Loader series is a high-performance secondary packaging system engineered to load trays into crates with unmatched speed, accuracy, and flexibility. Available as a stand-alone unit or fully integrated into G.Mondini production lines, the MCL is ideal for modern, high-volume food production environments.
With speeds of up to 200 packs per minute, compact modular design, and intelligent robotic handling, the MCL offers efficient, reliable, and hygienic crate loading—customizable to suit any layout or product format.
MBL loader details
Models: MCL 70 / MCL 140 / MCL 200
Function: Automated crate loading of trays (secondary packaging)
Speed: Up to 200 ppm (packs per minute)
Crate Infeed: Fully flexible—long or short edge leading
Tray Infeed: Integrated with TRAVE-style conveyors for smooth handling
Integration: Stand-alone or seamlessly integrated with G.Mondini lines
Hygiene: Open-access stainless steel frame for easy cleaning
Key features
High-Speed Performance

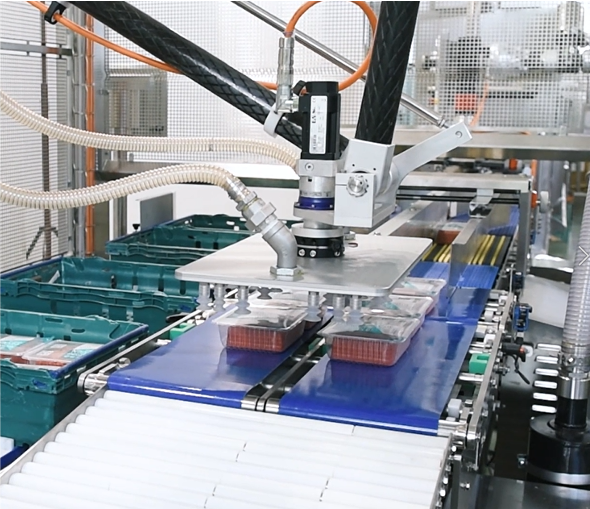

Productivity up to 200 ppm, with robotic pick-and-place up to 50 cycles/min.
Full Flexibility
Custom configuration for tray and crate orientation (long or short edge).

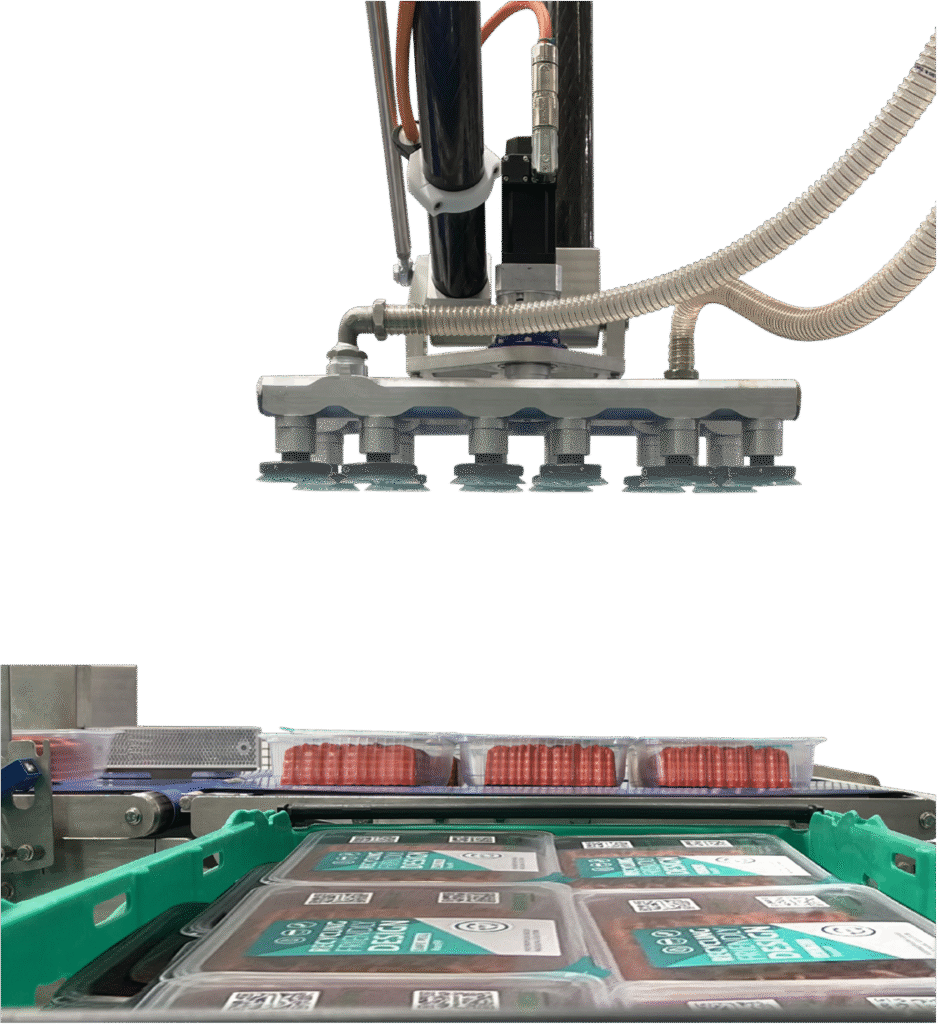

Robust Robotic Handling
Payload up to 35 kg with 0.1 mm repeatability and 2 or 3-axis movement.

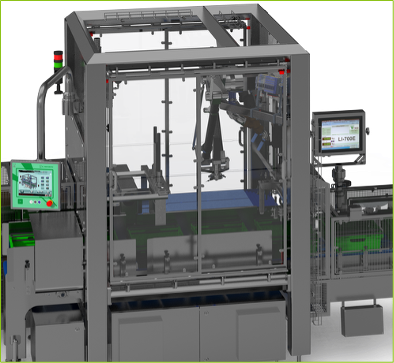

Compact & Modular Design
Space-efficient and easy to scale or adapt to production needs.
Easy Maintenance & Cleaning
Completely open access, hygienic design, and tool-free inspection.
Smart Integration
Common electrical components with other G.Mondini machines for easier servicing.
Techincal data
|
Model |
Max Speed |
Container Feed Speed |
Pick&Place speed |
Payload |
Working range |
Repeatability |
Axes |
|---|---|---|---|---|---|---|---|
|
MCL 70 |
70 ppm |
Up to 70 ppm |
Up to 50 cycles/min |
35 kg |
1000 mm |
±0.1 mm |
2 or 3 (optional) |
|
MCL 140 |
140 ppm |
Up to 140 ppm |
Up to 50 cycles/min |
35 kg |
1000 mm |
±0.1 mm |
2 or 3 (optional) |
|
MCL 200 |
200 ppm |
Up to 200 ppm |
Up to 50 cycles/min |
35 kg |
1000 mm |
±0.1 mm |
2 or 3 (optional) |
